Which Is Better: Jack-in Pile or Bored Pile?
When selecting a deep foundation method for construction projects, engineers and contractors often compare jack-in piles and bored piles. Each method has its own strengths, limitations, and ideal application scenarios.
So, which one is better?
The answer depends on project conditions—but in many modern urban projects, jack-in pile foundations are increasingly preferred due to their efficiency, environmental benefits, and superior quality control.

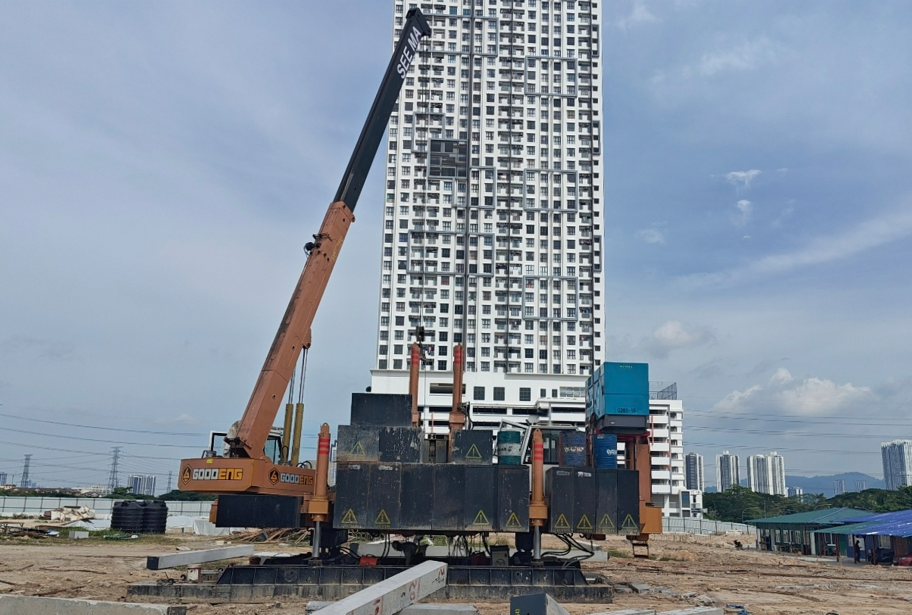

What Is a Jack-in Pile?
A jack-in pile (also known as a pressed-in pile) is installed by hydraulically pressing prefabricated piles into the ground using a static pile driver.
Key Features:
- No hammering or vibration
- Uses hydraulic force for installation
- Precast concrete or steel piles
- Suitable for urban and sensitive environments

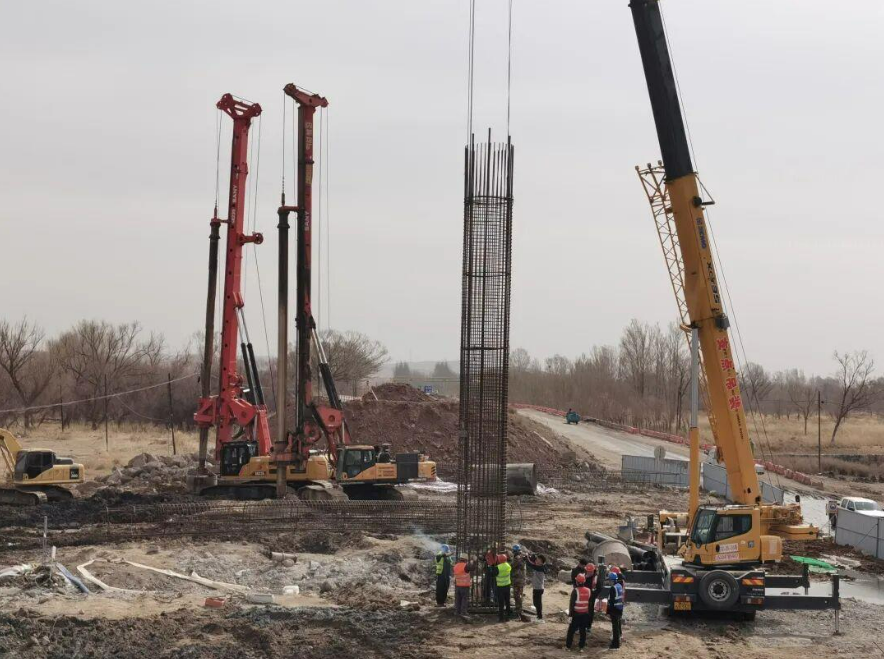

What Is a Bored Pile?
A bored pile is constructed by drilling a hole into the ground and then filling it with reinforced concrete.
Key Features:
- Requires drilling rigs
- Uses stabilizing fluid (e.g., bentonite or slurry)
- Cast-in-situ concrete piles
- Suitable for large load-bearing structures
Key Comparison: Jack-in Pile vs Bored Pile
|
Aspect |
Jack-in Pile |
Bored Pile |
|
Construction Speed |
Faster |
Slower |
|
Noise & Vibration |
Very low |
Moderate |
|
Quality Control |
High (factory-made piles) |
Variable (site-dependent) |
|
Environmental Impact |
Clean, no slurry |
Requires drilling fluid |
|
Site Condition |
Limited by soil resistance |
More adaptable |
|
Pile Damage Risk |
Low |
Possible during drilling |
|
Space Requirement |
Compact |
Larger working area needed |
Why Jack-in Pile Foundations Are Often Preferred
Jack-in pile foundation systems offer several clear advantages:
- Faster Construction Rates
Hydraulic pressing allows for continuous and efficient pile installation, significantly reducing project timelines.
- Better Quality Control
Since piles are precast in controlled factory environments, their strength and consistency are more reliable compared to cast-in-place bored piles.
- Less Pile Damage
The static pressing method minimizes structural stress on piles, reducing the risk of cracks or defects.
- Cleaner Site Conditions
Unlike bored piles, jack-in piles do not require stabilizing liquids such as bentonite slurry or drilling fluids.
This means:
- No slurry disposal
- Reduced environmental impact
- Safer and tidier construction sites
When Bored Piles Are Still the Better Choice
Despite the advantages of jack-in piles, bored piles are still widely used in certain situations:
- Very hard soil or rock layers
- Extremely deep foundation requirements
- Projects requiring large-diameter piles
- Sites where pressing resistance is too high
Final Verdict: Which Is Better?
There is no one-size-fits-all answer.
- Choose jack-in piles if you need:
- Fast construction
- Low noise and vibration
- Clean and environmentally friendly operations
- High quality consistency
- Choose bored piles if you need:
- Deep penetration in hard ground
- Large-diameter load-bearing capacity
- Flexibility in complex soil conditions
Conclusion
Both jack-in piles and bored piles play essential roles in modern foundation engineering. However, with increasing emphasis on sustainability, efficiency, and urban-friendly construction, jack-in pile foundations are becoming the preferred choice for many projects.
By understanding the differences and advantages of each method, you can select the most suitable foundation solution for your specific project needs.
